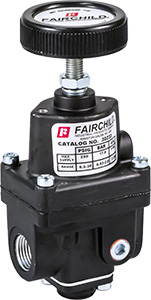

Model 30 Compact Precision Pressure Regulator 30型紧凑型精密压力调节器
Part Number: M30
Rotork Fairchild Model 30 is a compact precision pressure regulator designed for applications that require high performance and accurate process control where space may be limited or you wish to reduce the overall size of your panel or equipment. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.
Rotork Fairchild Model 30是一款紧凑型精密压力调节器，专为需要高性能和精确过程控制的应用而设计，这些应用可能空间有限，或者您希望减小面板或设备的整体尺寸。通过使用根据流速调节供应阀的抽吸管，在变化的流量条件下保持调节压力的稳定性。
The Model 30 pneumatic regulator features control sensitivity of 1/4" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions. The Fairchild Model 30 precision regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa up to 2-100 psi, 0.1-7 BAR, 15-700 kPa. 30222, 30232, 30242, 30252, 30223, 30233, 30243, 30253.
30型气动调节器具有1/4英寸水柱的控制灵敏度和平衡供应阀，可提供一致可靠的精度，无论供应压力变化或条件如何，都能保持所需的设定值。Fairchild Model 30精密调节器将处理250 psi、17 BAR的最大供应压力，并提供五（5）个输出压力范围，从0-2 psi、0-0.15 BAR、0-15 kPa到2-100 psi、0.1-7 BAR、15-700 kPa。30222, 30232, 30242, 30252, 30223, 30233, 30243, 30253.
Features 特征
Compact size
尺寸紧凑
Control sensitivity of 1/4" water column
1/4“水柱控制灵敏度
Pressure balanced supply valve
压力平衡供应阀
Flow of up to 40 SCFM with 100 psig
流量高达40 SCFM，压力为100 psig
Aspirator tube design
吸气管设计
Separate control chamber
独立控制室
Unit construction
单位建设
Benefits 好处
Excellent for applications where space is tight
非常适合空间狭小的应用
High accuracy for use in precision applications
高精度，适用于精密应用
Allows the regulator to remain unaffected by supply pressure changes
允许调节器不受供应压力变化的影响
For use in applications with high flow requirements
用于高流量要求的应用
Compensates downstream pressure drop under flow conditions
在流动条件下补偿下游压降
Isolates the diaphragm from the main flow to eliminate hunting and buzzing
将隔膜与主流隔离开，以消除振荡和嗡嗡声
Permits you service the Model 30 regulator without removing it from the line
允许您在不从生产线上拆卸的情况下维修Model 30调节器
